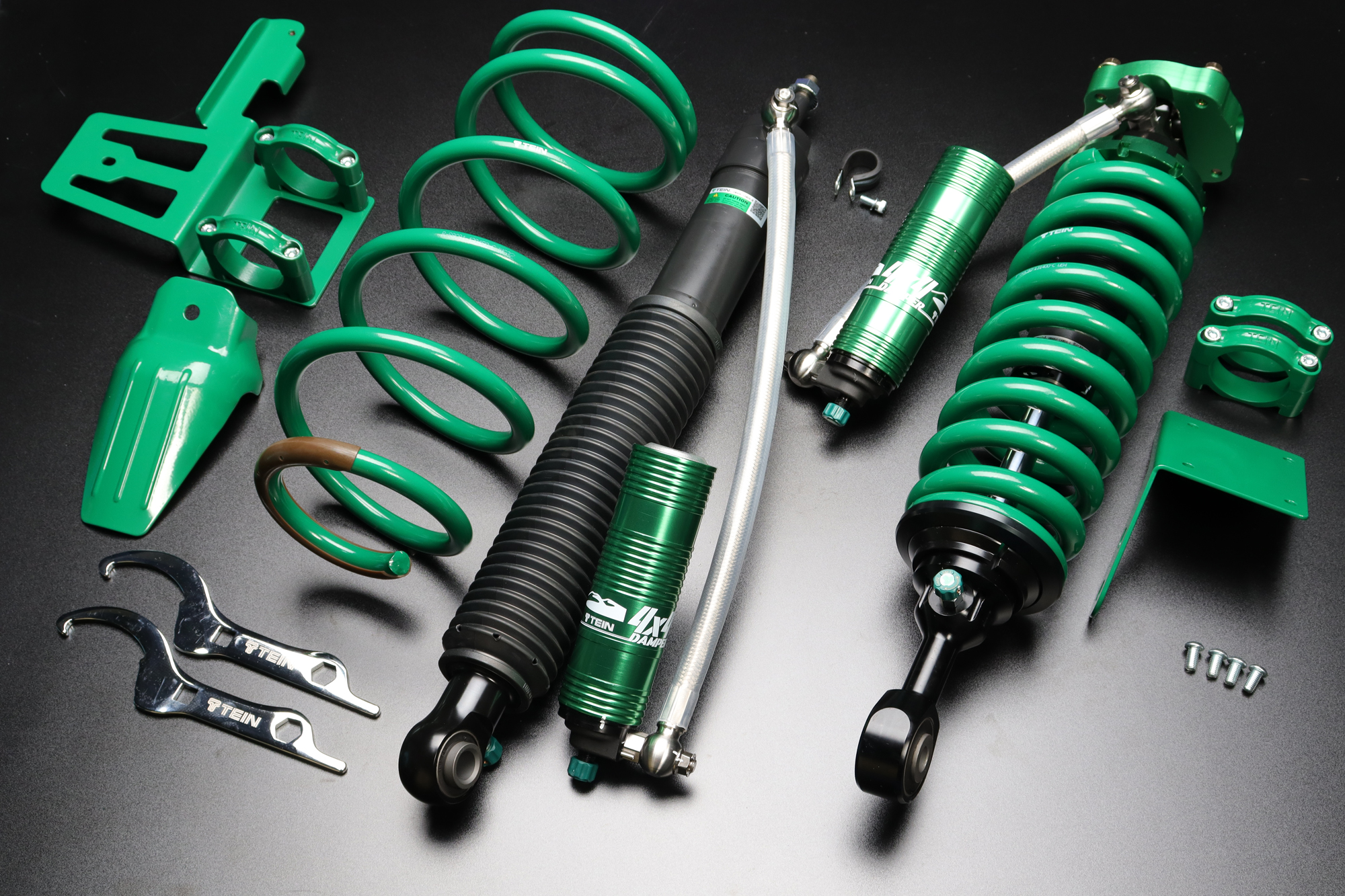

4X4 DAMPER GRAVEL 2
Specifications
Lift Up
Standard ride height for 4X4 DAMPER GRAVEL 2 is set at 40mm (approx. 1.5in) higher than the original, to secure sufficient road clearance to accommodate various driving scenes from streets to off-roading.
4X4 DAMPER GRAVEL 2 is also designed for and configured to be most suitable for the lifted height. Instead of simply raising the standard height, which can lead to insufficient stroke imparing the stability, 4X4 DAMPER GRAVEL 2 is tested on each vehicle models to optimize the dimensions and settings, in order to ensure sufficient strokes and to enable the best suitable alignment.
External Reservoir & 2-Way Damping Force Adjustable
Use of reservoir tank allows for larger oil capacity and improved thermal dissipation, enabling the generation of stable linear damping force.
Adjustability of compression and rebound damping force individually in 16 levels each allows for wider adjustable rance and comes in very useful in responding to ever-changing road conditions.
Hydraulic Rebound Stopper (HRBS)
HRBS helps to improve maneuverability for off-road driving.
Shock absorbers tend to get fully extended while running off road and that could cause enormous impacts, just like when compressed, possibly leading to unstable movements and/or noise problems.
4x4 DAMPER GRAVEL 2, equipped with HRBS, internally converts the impact of the stroke to thermal energy (heat) and absorb it, greatly reducing the impact that disturbs the vehicle's behavior. With less damage to shock absorbers, HRBS also contributes to superior durability.
Thread-Type Ride Height Adjustment
The ride height can be adjusted by moving the spring seat up or down. Characteristic of this system are its simple structure and ease of use.
Mount Included
An easy-to-install mount, exclusively designed for each vehicle model, is included in the product kit.
For some models which do not have mount plates, original mounts are used.
Mono-Tube
4x4 DAMPER GRAVEL 2 incorporates mono-tube structure with tougher & larger bore shell case to accommodate wide 56mm piston rod, allowing for increased oil capacity. All such contributes to stable generation of damping force required to respond to even small changes in road conditions.
Overhaul/Revalving Available
Like most TEIN shock absorbers, 4X4 DAMPER GRAVEL 2 can be overhauled to restore its original performance.
At the time of overhaul, we also offer revalving service: you can have the damping force setup updated to suit your preferences.
Our after-sales service adds to the joy of using our products.
High Durability and Reliablility
No-Sag Spring
Cold formed with SAE9254 steel (minimum tensile strength 200 kgf/mm2), our springs are outstandingly sag-proof and boast extreme resiliency.
Superior rust protection is ensured with a highly durable powder coating that does not peel or flake. Our high-quality springs can be used without worries, in any conditions.
High-Performance Damper Oil
Exhibiting a stable viscosity in a broad temperature range, the high-performance damper oil sustains smooth strokes and a reliable damping force under all kinds of circumstances. It has excellent anti-foaming properties that protect it from cavitation (bubble-forming), and is resistant to overheating, so that it works noiselessly even on rough roads. The damper oil keeps up its superior performance long-term, because it is also resistant to deterioration over time.
Vehicle-Specific Fittings
Tank Bracket
Anchoring brackets for reservoirs, specially designed for each vehicle model, are included for ease of installation.
*Prototype image shown. May differ from the actual product.
Damper Protector
4x4 DAMPER GRAVEL 2 kit includes damper protectors for rear, exclusively designed for each vehicle model, to protect dampers from road debris, pebbles & gravels when driving off road.
*Prototype image shown. May differ from the actual product.
4x4 DAMPER GRAVEL2 TOYOTA LAND CRUISER (GRJ200L/URJ200L/VDJ200L)
4x4 DAMPER GRAVEL2 TOYOTA LAND CRUISER (VJA300W/VJA300L)
